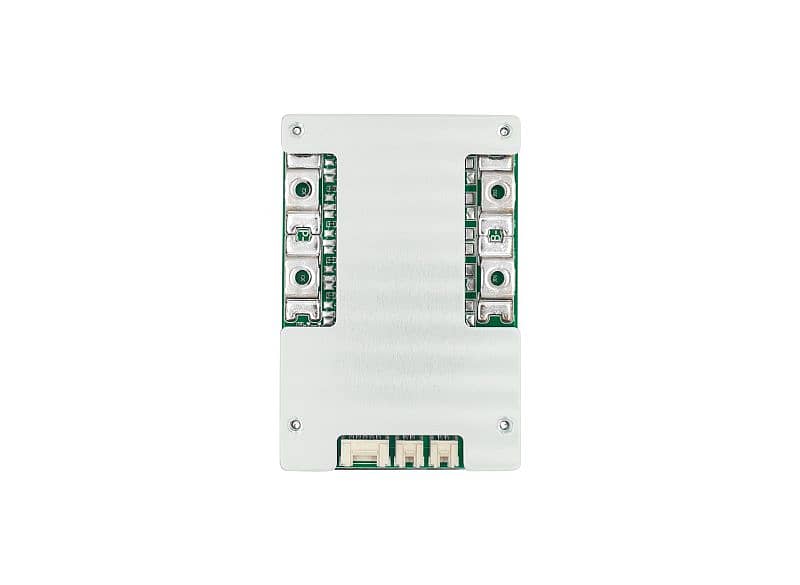

Model: TDT-6064
• Dimensions(mm): 104*70*10
• Cells Series: 3S / 4S
• Battery Type : LFP
• Input Charging Voltage: 12V
• Continuos Curren: 100A

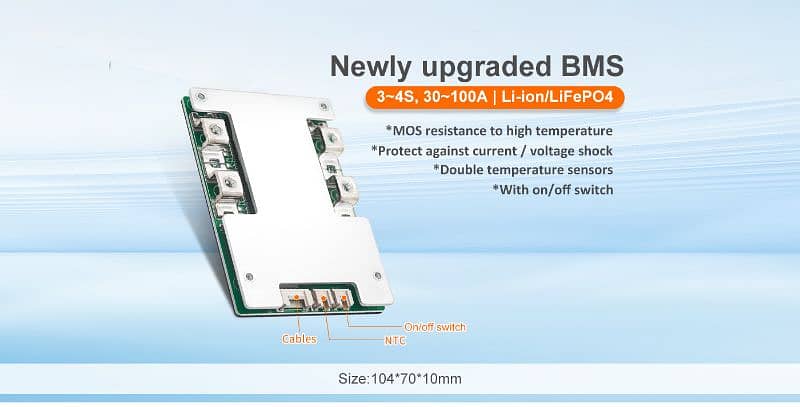

TDT-6064 is a hardware BMS for 12v battery packs Supporting parallel connection. which can be applied to Lithium iron phosphate. The protective board has strong load capacity, and the maximum continuous discharge current can reach 100A
3-4 unit series protection
Various protection functions for charging and discharging
Hardware functional process for discharging overcurrent and short circuit protection
