TypeLithium Ion
BrandOthers
Battery CapacityOthers
ConditionNew
Description
Model
GREEN ENERGY
AT THE HELM OF INNOVATION

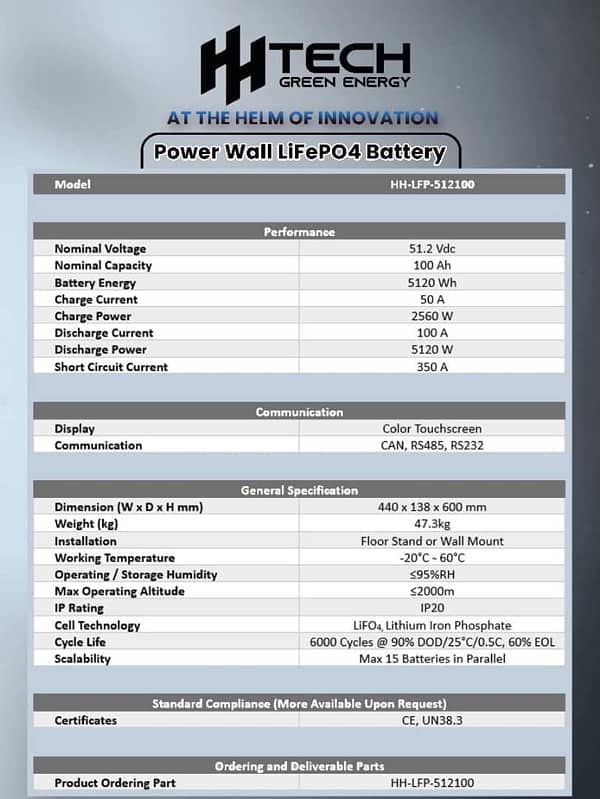

Power Wall LiFePO4 Battery
HH-LFP-512100
Performance
Nominal Voltage
51.2 Vdc
Nominal Capacity
100 Ah
Battery Energy
5120 Wh
Charge Current
50 A
Charge Power
2560 W
Discharge Current
100 A
Discharge Power
5120 W
Short Circuit Current
350 A
Communication
Display
Communication
Color Touchscreen
CAN, R$485, R5232
General Specification
Dimension (W x D x H mm)
440 x 138 x 600 mm
Weight (ke)
47.3kg
Installation
Floor Stand or Wall Mount
Working Temperature
-20°C - 60°C
Operating / Storage Humidity
≤95%RH
Max Operating Altitude
≤2000m
IP Rating
IP20
Cell Technology
LiFO4, Lithium Iron Phosphate
Cycle Life
6000 Cycles @ 90% DOD/25°C/0.5C, 60% EOL
Scalability
Max 15 Batteries in Parallel
Certificates
Standard Compliance (More Available Upon Request)
CE, UN38.3
Product Ordering Part
Ordering and Deliverable Parts
HH-LFP-512100
