Rs 57,500

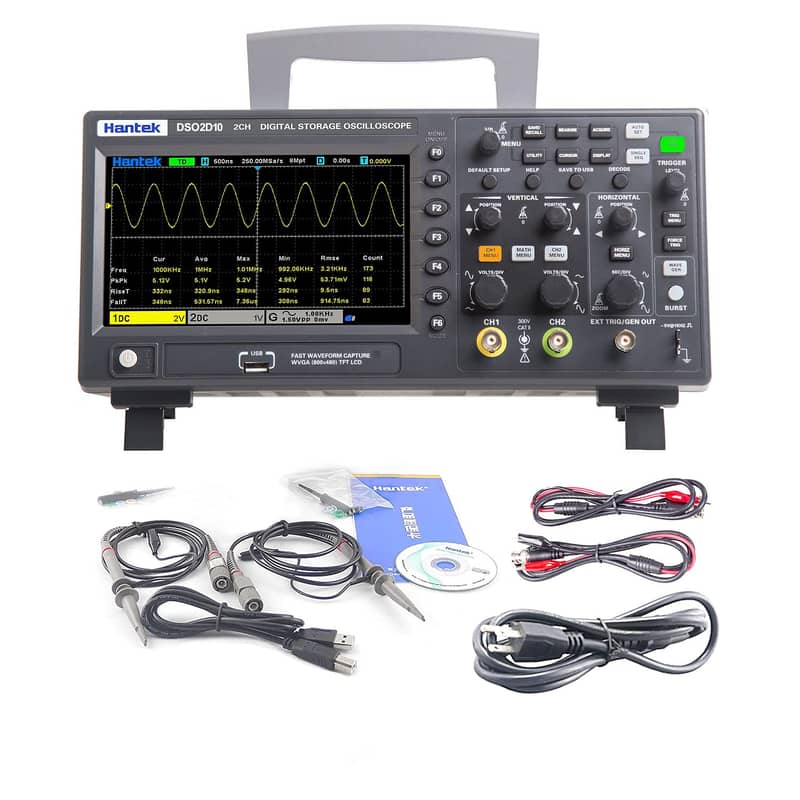

DSO2D10 Hantek Digital Storage Oscilloscope 2CH Dual Channel 100MHz

Gulshan-e-Iqbal Town, Karachi
4 hours ago
Details
ConditionNew
Description
DSO2D10 Hantek Buy Now DSO2D10 Hantek At Best Price In Pakistan 2022. The Hantek DSO2D10 is a budget 2-channel oscilloscope with 100 MHz bandwidth and a built-in function generator. The DSO2D10 features decoding and trigger options like I2C, SPI, UART/RS232 and CAN, which is a nice plus for an oscilloscope in this price range. Order Now: https://testinstruments. pk/dso2d10-hantek Features: Model:DSO2D10 1), 2 channels, each channel has independent knob control; 2), Analog bandwidth 100MHZ 3), The highest sampling rate is 1 GSa/s; 4), The storage depth is 8Mpts; 5), The vertical range 2mV/div ~ 10V/div; 6), Built-in a 25MHz signal generator; 7), Vertical resolution: 8bit; 8), Trigger: edge, pulse, video, slope, timeout, window, pattern, interval, runt, UART, LIN, CAN, SPI, IIC; 9), Bus decoding and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN; 10), Can save settings, waveforms, reference waveforms, CSV, pictures and other data formats. 11), 3-digit digital voltmeter and 6-digit frequency meter functions; 12), Support 32 kinds of automatic measurement and statistics functions, real-time statistics of minimum, maximum, standard deviation and other statistical information; Model DSO2D10 Bandwidth 100MHz Oscilloscope channels 2CH Waveform generator 1CH Oscilloscope Sample rate 1GSa/s (single channel) 500MSa/s (two channels) Acquisition Normal Sample data Peak-to-peak value Display high frequency and random burr Average Average waveform, times: 4, 8, 16, 32, 64, 128 High resolution Up to 12bit Input Input coupling DC, AC, GND Input impedance 1MΩ±2% ‖20pF±3pF Probe attenuation factor 1X, 10X, 100X, 1000X Voltage rating 300V CAT II Maximum input voltage 300VRMS (10X) Horizontal Waveform interpolation (sin x)/x Maximum record length Single channel maximum 8M Two channels maximum 4M Horizontal scale range 2ns/div~100s/div 1, 2, 5 step by step Time base mode Y-T, X-Y, Roll Zero offset ±0.5 div×minimum time base gear Sample Rate and Delay Time Accuracy ±25ppm Delta Time Measurement Accuracy (Full Bandwidth)Sample Rate and Delay Time Accuracy single-shot, Normal mode ±1 sample interval+100ppm×reading+0.6ns 16 times averages ±1 sample interval+100ppm×reading+0.4ns Sample interval=sec/div÷200 Sample Rate and Delay Time Accuracy ±50ppmat any interval greater than 1ms Vertical Model DSO2D10 Bandwidth 100MHz Rising time in BNC position (typical) 3.5ns Vertical resolution 8 bits resolution, each channel samples simultaneously Vertical sensitivity 2mV/div to 10V/div Offset range ≥ 200mV/div, ±1V; 200mV/div ±50V Mathematical operation +, -, ×, ÷, FFT FFT Window: Rectangle, Hanning, Hamming, Blackman, Bartlett, Flattop Bandwidth Limit 20MHz Bass response-3db In BNC position ≤ 10Hz Vertical gain accuracy In ''normal'' or ''average'' acquisition mode, the accuracy of 10V/div to 10mV/div is ±3%; In ''normal'' or ''average'' acquisition mode, the accuracy of 5mV/div to 2mV/div is ±4%
