Description

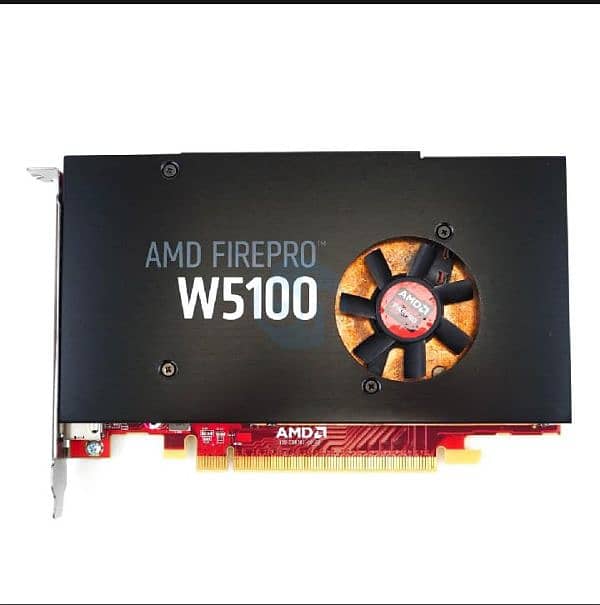

AMD FIREPRO W5100 Clock Speeds
GPU Clock
930 MHz
Memory Clock
1500 MHz
6 Gbps effective
Memory
Memory Size
4 GB
Memory Type
GDDR5
Memory Bus
128 bit
Bandwidth
96.00 GB/s
Render Config
Shading Units
768
TMUs
48
ROPs
16
Compute Units
12
L1 Cache
16 KB (per CU)
L2 Cache
256 KB
Theoretical Performance
Pixel Rate
14.88 GPixel/s
Texture Rate
44.64 GTexel/s
FP32 (float)
1,428 GFLOPS
FP64 (double)
89.28 GFLOPS (1:16)
Board Design
Slot Width
Single-slot
Length
173 mm
6.8 inches
Width
111 mm
4.4 inches
TDP
50 W
Suggested PSU
250 W
Outputs

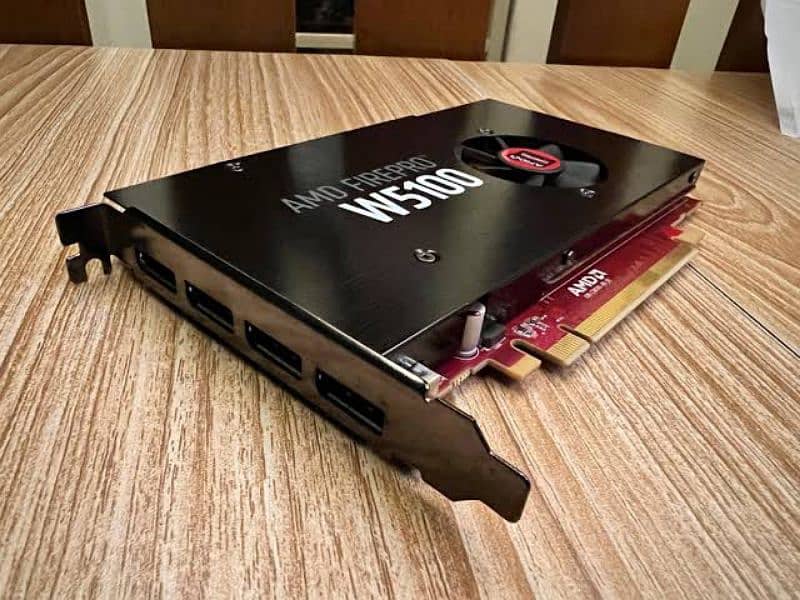

4x DisplayPort 1.2
Power Connectors
None
Board Number
109-C58781-00_02
Graphics Features
DirectX
12 (12_0)
OpenGL
4.6
OpenCL
2.1
Vulkan
1.2.170
Shader Model
6.5
